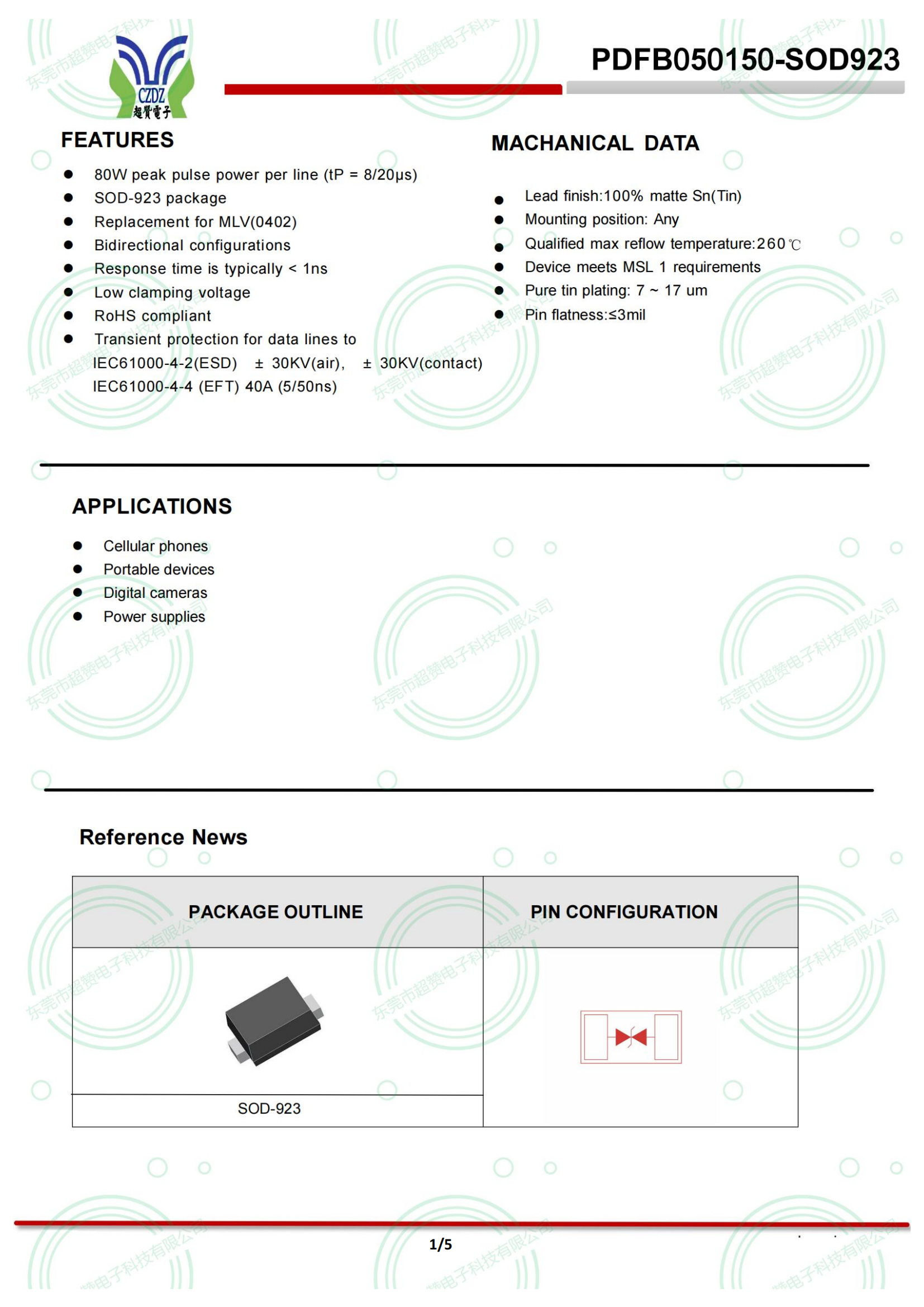

PDFB050150-SOD923 TVS静电二极管

80W peak pulse power per line (tP = 8/20μs)

 SOD-923 package

 Replacement for MLV(0402)

 Bidirectional configurations

 Response time is typically < 1ns

 Low clamping voltage

 RoHS compliant

Transient protection for data lines to

     IEC61000-4-2(ESD) ± 30KV(air), ± 30KV(contact);

      IEC61000-4-4 (EFT) 40A (5/50ns)
