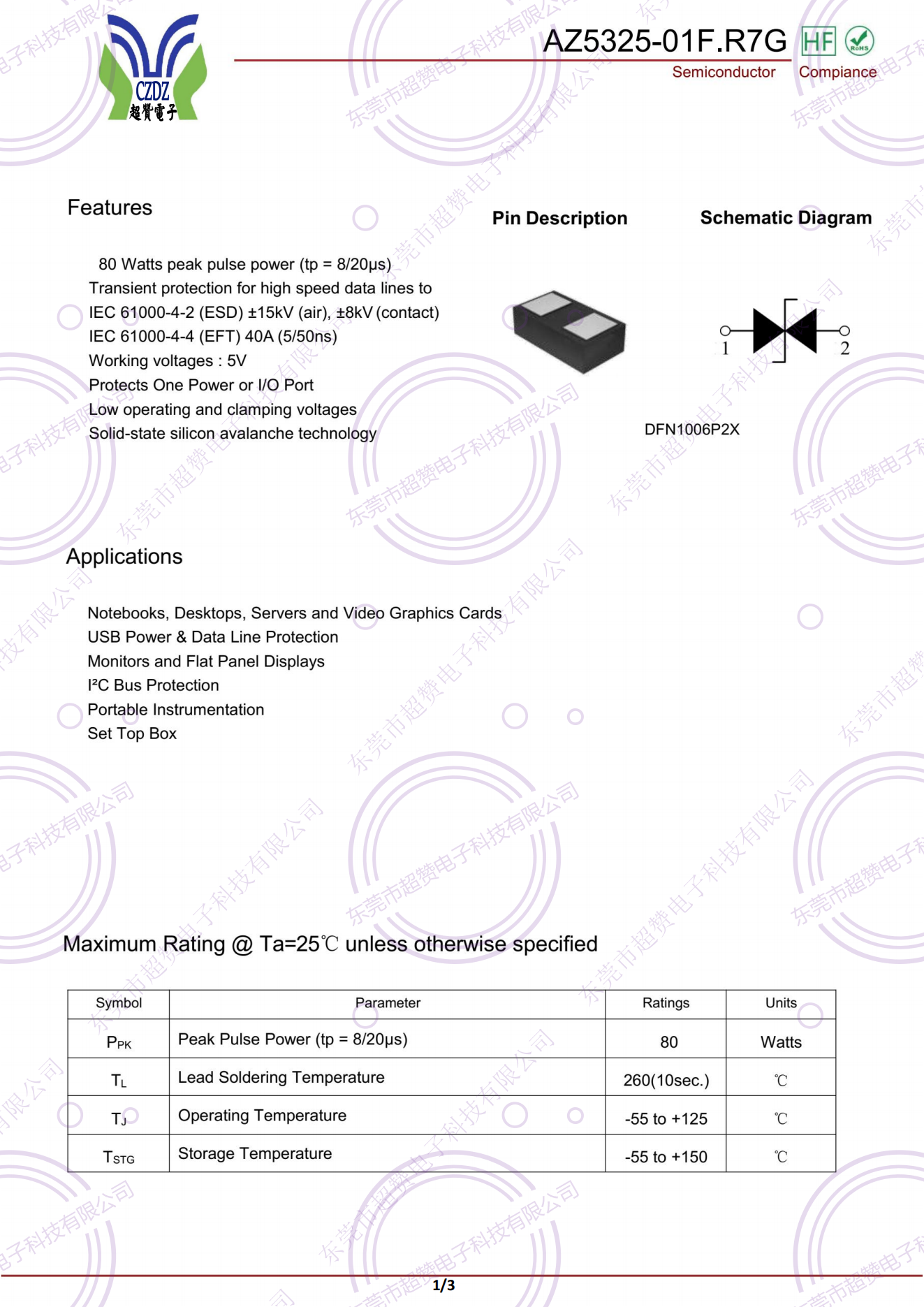

80 Watts peak pulse power (tp=8/20μs)
Transient protection for high speed data lines toIEC 61000-4-2 (ESD)±15kV(air),±8kV(contact)IEC 61000-4-4 (EFT)40A(5/50ns)
Working voltages:5V
Protects One Power or I/O Port
Low operating and clamping voltagesSolid-state silicon avalanche technology
